BDS 4" Suspension Lift Kit with FOX Shocks for 2019+ Silverado 1500

BDS Suspension 4" Lift Kit for the Chevrolet Silverado 1500

This BDS 4" Lift Kit for 2019+ Chevy Silverado 1500 / GMC Sierra 1500 with Fox 2.5 Performance Elite Shocks is designed to deliver exceptional ground clearance and off-road capacity. It includes Fox shock technology to provide precision tuning and a smooth ride, while the adjustable DSC allows you to customize the performance of your shocks to match the terrain. With heavy-duty front coils and 4" of added ride height, you can take the road less travelled and stand tall with confidence.

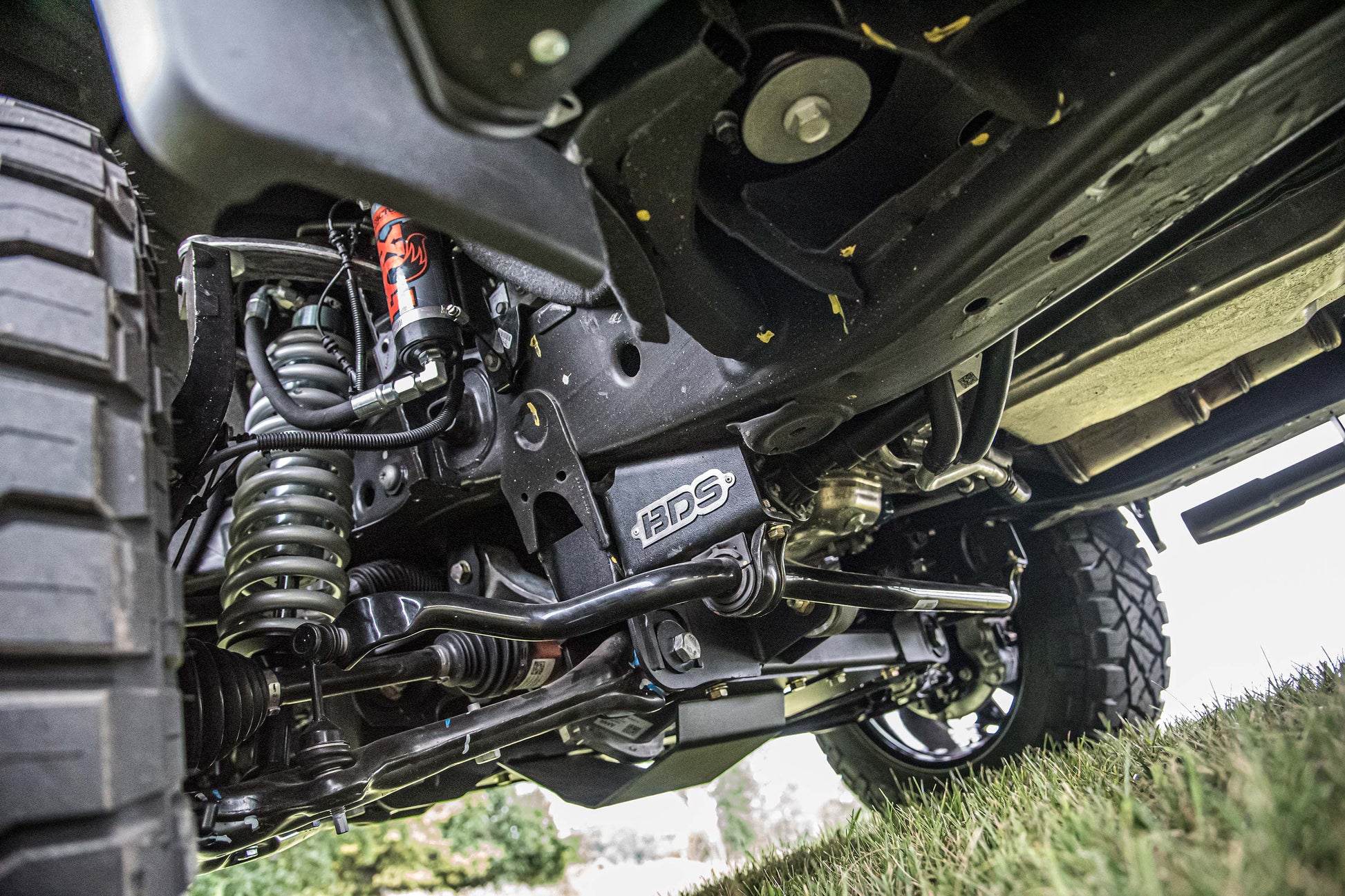

The Fox Shocks with DSC allows for easy adjustment of the vehicle's suspension compression dampening so you can dial in the ideal ride performance to soak up the bumps, both large and small. The DSC has 12 adjustment points for the high speed compression as well as 10 adjustment points for the low speed compression allowing you to make large or small changes to further improve your performance. Adjustments can be made by simply twisting the knobs located on the end of the reservoir. No tools or shop adjustments needed, allowing you to tune the suspension out on the trail.

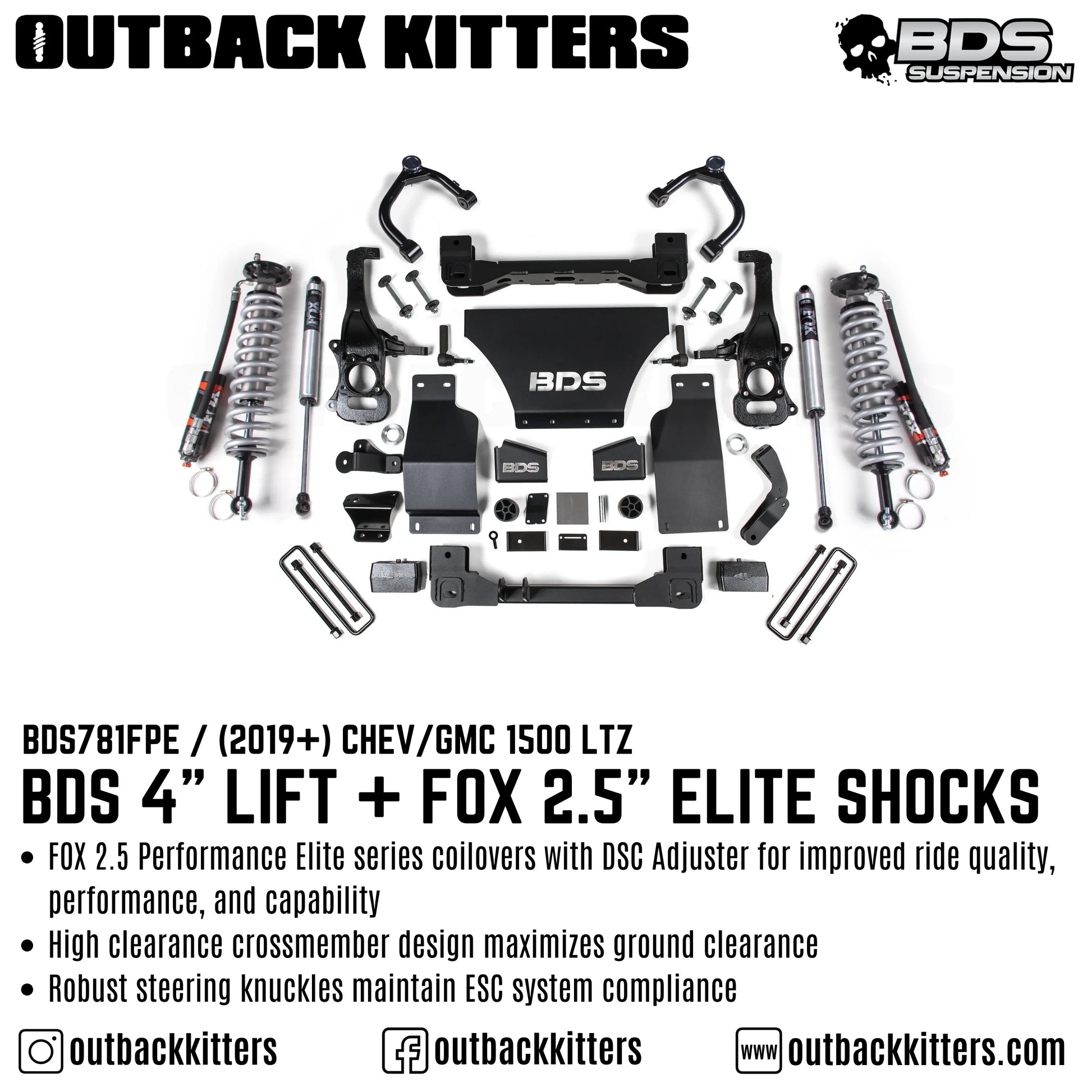

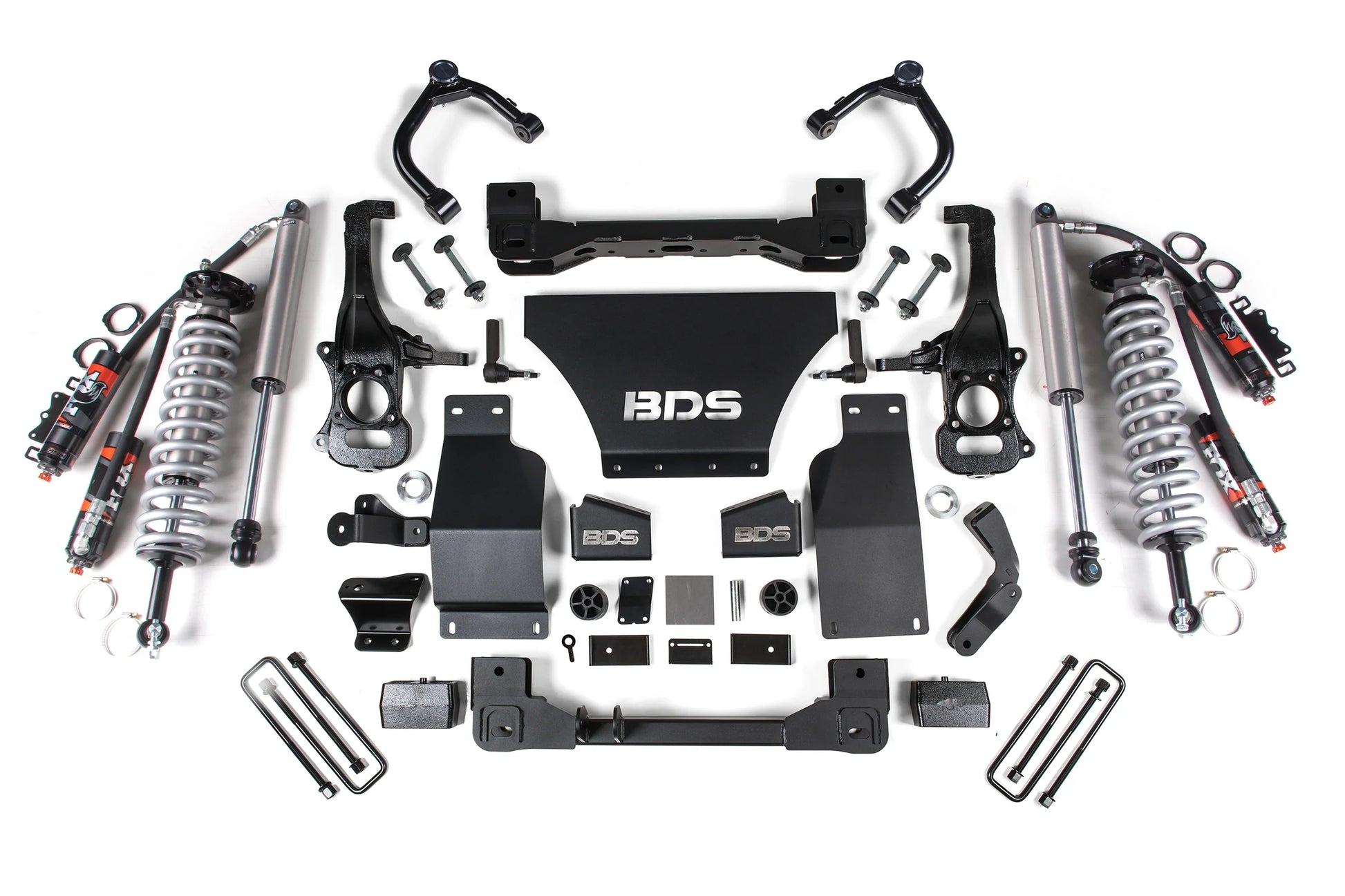

This mammoth kit includes:

• Front & Rear Fox Shocks
• Front Coils*
• Rear Spacer Block
• Upper Control Arms
• Diff Drop Kit
• New Knuckles

AUSTRALIAN CONVERSION NOTES

• Due to the Australian Remanufacturing Process, you will need to arrange custom hard brake lines. This needs to be factored in when arranging installation of the product.

SPECIFICATIONS

• Front Lift Method : Cross-Member
• Rear Lift Method : Block
• Shocks Included : Yes
• Front Lift Height : 4"
• Rear Lift Height : 2"

RECOMMENDED TIRES AND WHEELS

(Trimming may be required)

• 33 x 12.5 with 17 x 9 and 4.5 in. Backspace
• 33 x 12.5 with 20 x 9 and 6.25 in. Backspace
• 35 x 12.5 with 20 x 9 and 6.25 in. Backspace
• 17" and 18" wheels will NOT fit with these kits unless they are a Negative Offset (i.e. -12). A 0 offset is variable and more often than not, will not fit.
• 20" wheels are recommended to clear the extended knuckle and tie rod end.
