BDS Suspension 3" Lift Kit for 2020+ Chevy Silverado/GMC Sierra 2500HD

This BDS Suspension 3" Lift Kit for 2020+ Chevy Silverado / GMC 2500 / 3500 with Fox 2.5 Performance Elite Shocks is designed to deliver good ground clearance and off-road capacity. It includes Fox shock technology to provide precision tuning and a smooth ride, while the adjustable DSC allows you to customise the performance of your shocks to match the terrain. With 3" of added ride height, you can take the road less travelled and stand tall with confidence.

The Fox Shocks with DSC allows for easy adjustment of the vehicle's suspension compression dampening so you can dial in the ideal ride performance to soak up the bumps, both large and small. The DSC has 12 adjustment points for the high speed compression as well as 10 adjustment points for the low speed compression allowing you to make large or small changes to further improve your performance. Adjustments can be made by simply twisting the knobs located on the end of the reservoir. No tools or shop adjustments needed, allowing you to tune the suspension out on the trail.

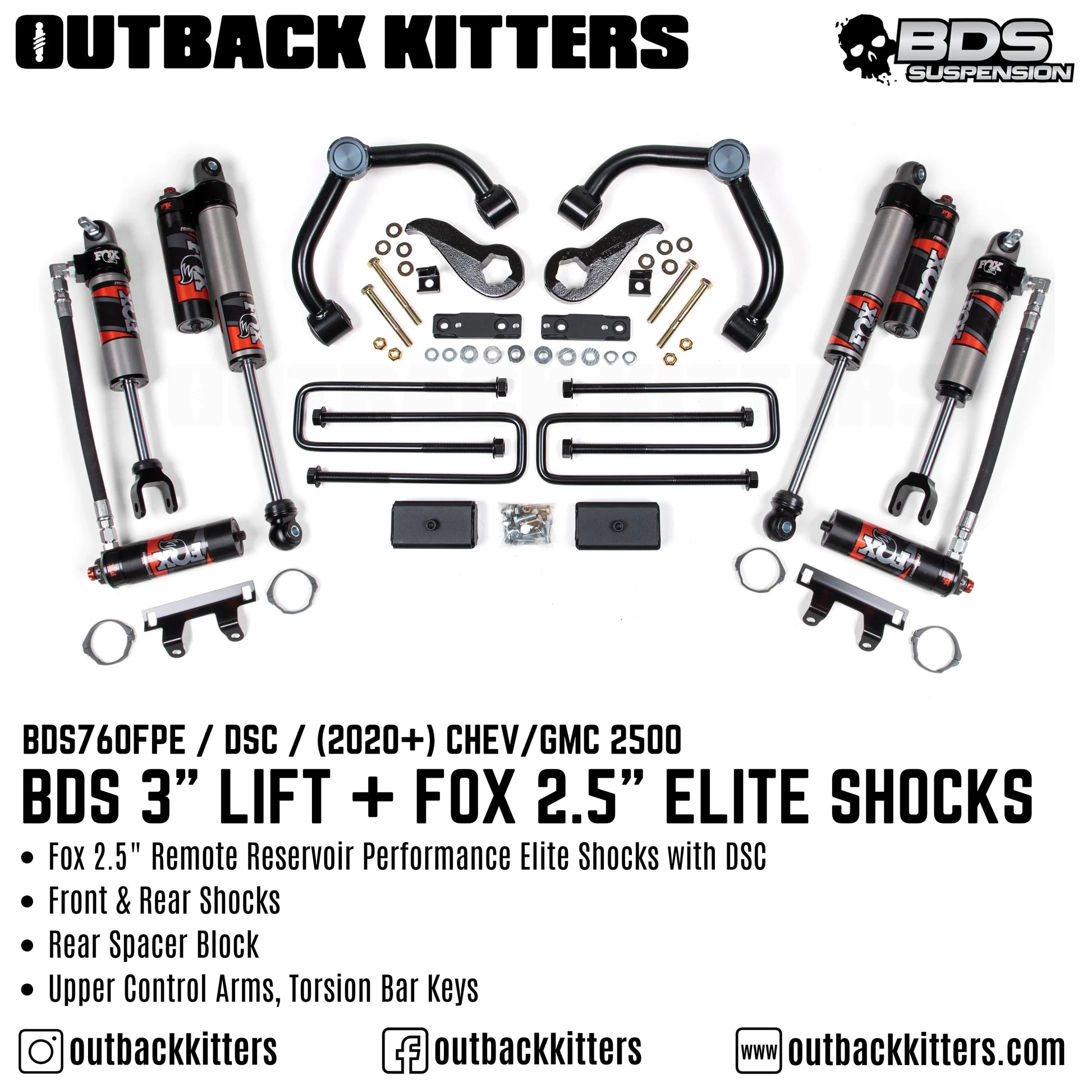

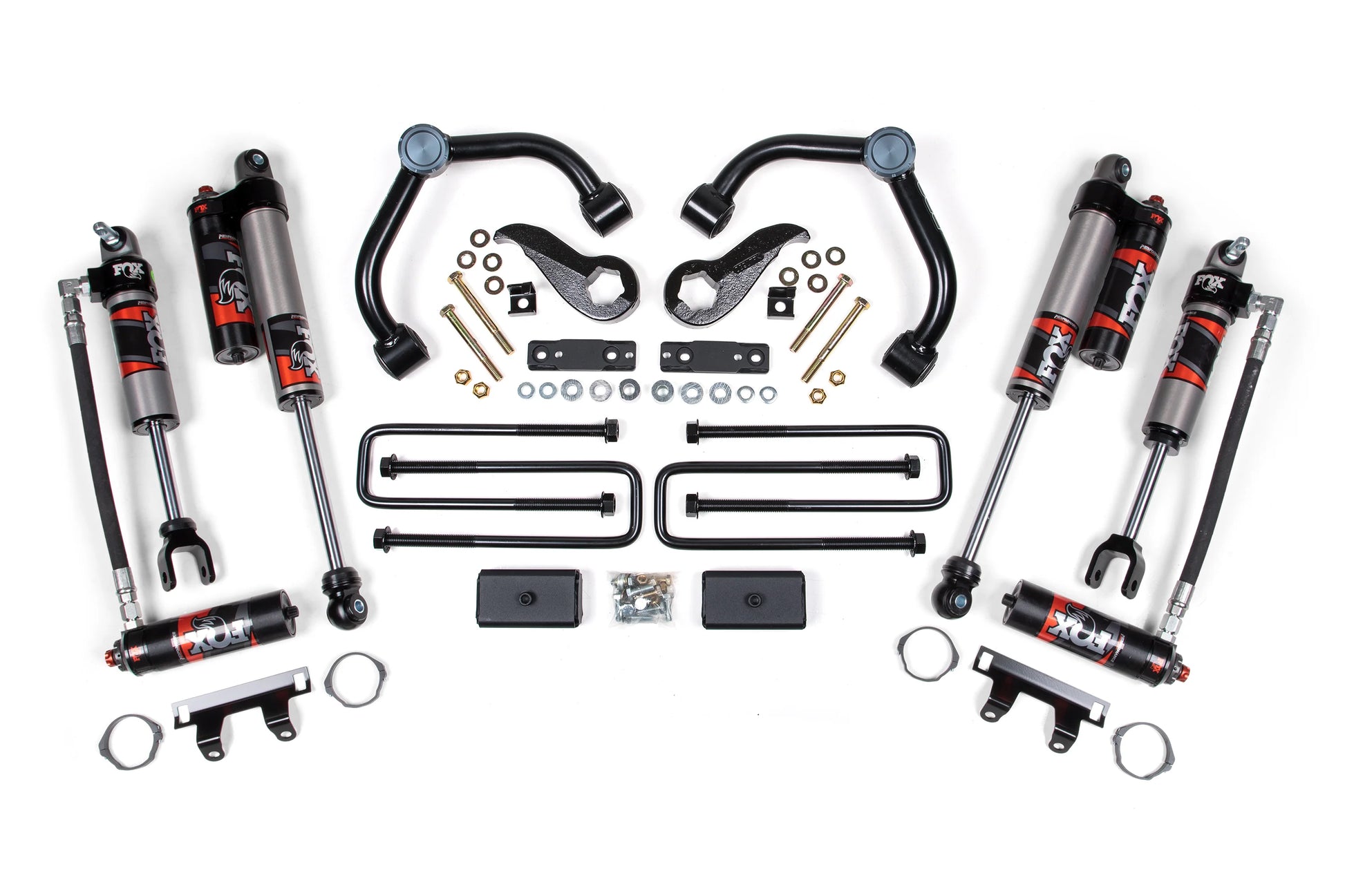

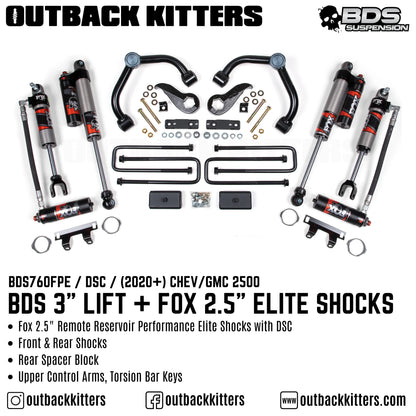

This nifty lift kit includes:

• Front & Rear Shocks
• Rear Spacer Block
• Upper Control Arms
• Torsion Bar Keys

SHOCK OPTIONS

• (Best) Fox 2.5" Remote Reservoir Performance Elite with DSC
• (Better) Fox 2.5" HTO Performance Series

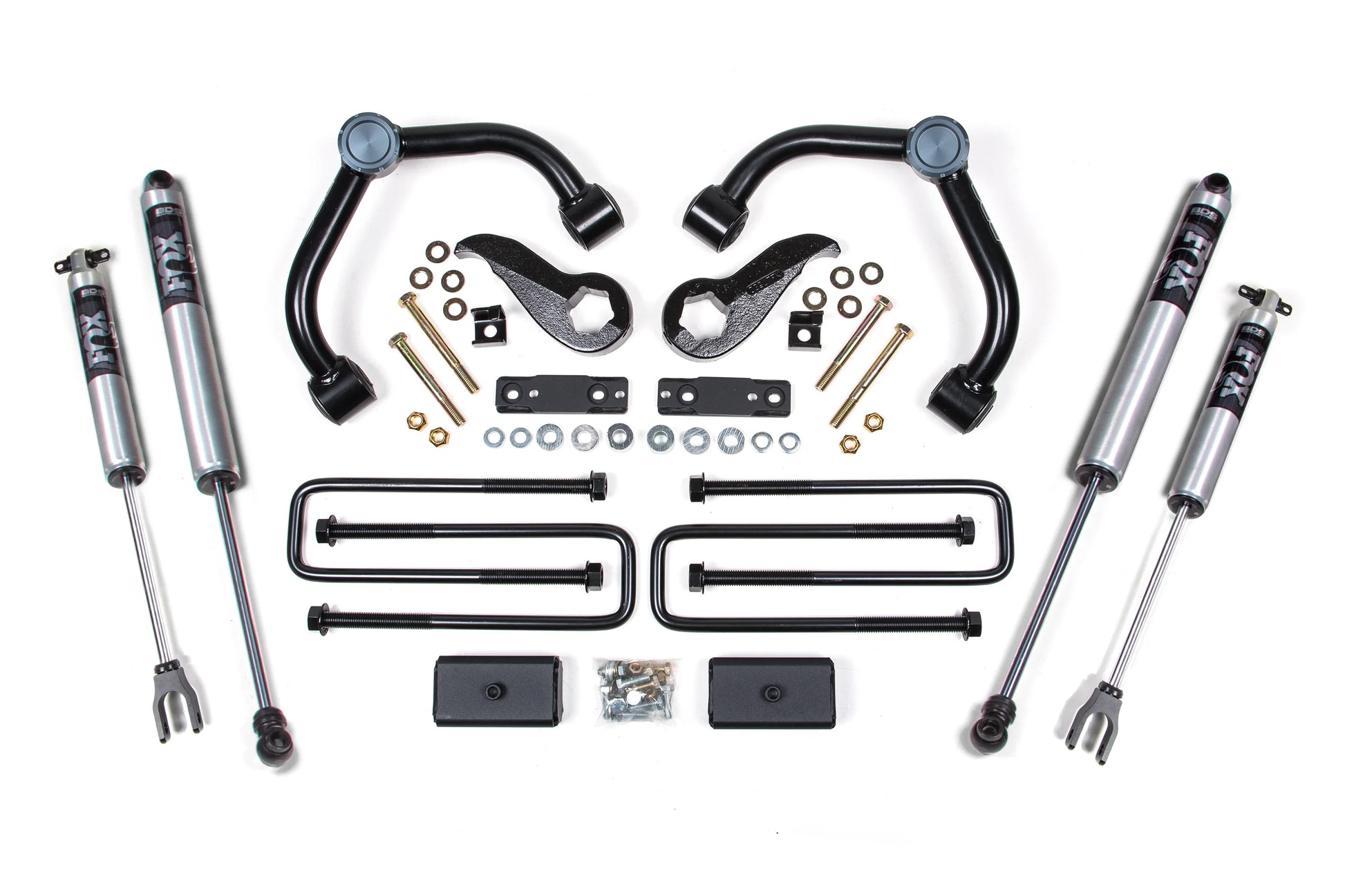

• (Good) Fox 2.0" Performance Series

SPECIFICATIONS

• Front Lift Method : Torsion Key
• Rear Lift Method : Block
• Shocks Included : Yes
• Front Lift Height : 3"
• Rear Lift Height : 2"

TYRE & WHEEL COMBINATIONS

• *Trimming may be required*
• 295/60 w/ 20x9 and 5.5-5.75" back spacing
• 285/65 w/ 20x9 and 5.5-5.75" back spacing
• 35x12.5 w/ 20x9 and 5.5-5.75" back spacing

IMPORTANT NOTES

• Australian converted vehicles may need additional customisation for the mounting of the shocks.
• Factory 17-18" wheels cannot be reinstalled due to tie rod end interference, stock 20" wheels can be reinstalled with up to a 35x12.50 tire.

INSTALLATION

• Estimated Time: 8 - 10 hours
• Difficultly Level: Moderate
